home » product » Heaters & Coolers » Heaters » FSTS S Type Temperature Sensor

Heaters & Coolers » Heaters

•The best abnormal temperature detector for your equipment
•The best solution for surface temperature sensing
•Applicable temperature range:-30°C~250°C
•Accuracy: DINIEC751 class A or B
•The material has been certified by UL and complies with UL94HB fire-resistance rating
•Fast and accurate temperature sensing; 100% IP68 water proof
•It can be attached on the surface of the object to be sensed with the advantages of simple installation, resistance against severe environment and chemicals
•Can be securely attached on glass, metal, plastics, etc

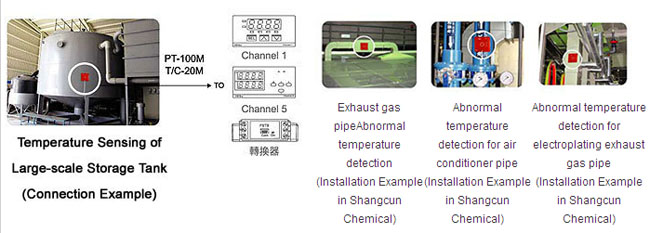

•Application Example: Power Plant、Cogeneration Plant、Chemical Plant、Large Pipe Diameter、Large Area、Surface Temperature Sensing

Price Table：

Quantity:

Specification

Type	S	Note
Outer Dimensions	100X100 (mm)	Can be customized for special requirements
Temperature Sensing Body	PT100Ω K.J. Thermister A or B class	Can be customized for special requirements
Response Speed	200°C / 2S	DINIEC751
Thermal Conductivity	1.5W / mK	ASTM D547D
Temperature Sensing Range	-30~250°C
Safety Certification (PAD)	UL94HB / UL746C	E54153 / E65361
Adhesion of Backside Sticker	1n2 1000 (100°C) / 500 (150°C) / 400 (200°C) / 300 (250°C) (g)
Corrosion Resistance	Gasoline, Acetone, cleanser, mild acid/base, etc	SPLASH TESTING
Water Proof Rating	IP68	CNS14165
Insulation Voltage Resistance	5KV	ASTM D-149-91
Installation Type	Backside Sticker (-30°C~200°C) Silicone (200°C以上)
Conducting Wire	PVC (100°C) Silicone (150°C) Teflon (180°C)
Connector	Cylindrical Body 17Φx80(mm) IP68 UL94V0 Terminal Box 82x50x40(mm) IP66 UL94V0	Optional Accessories

Dimension

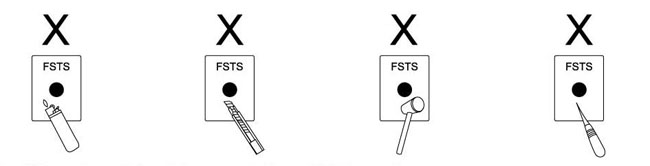

Precautions

After peeling off from attachment, it is necessary to stick a new backside sticker before another attachment (a spare backside sticker is supplied with the product).

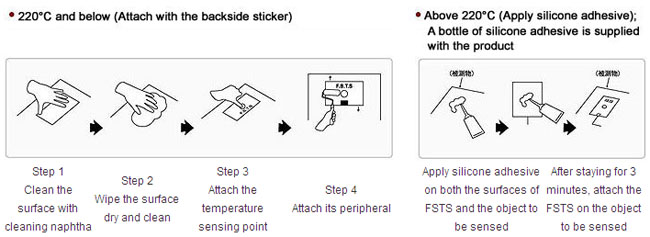

Attachment Technique

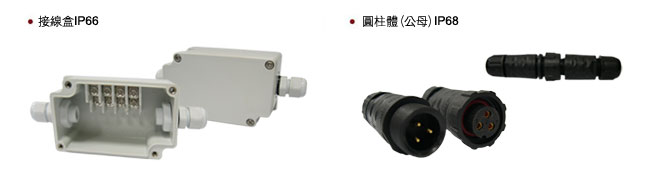

Connector

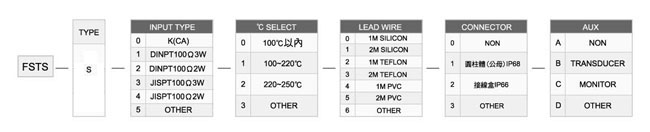

Order

Example
