home » product » Heaters & Coolers » Heaters » FSTS R TYPE Temperature Sensor

Heaters & Coolers » Heaters

•Suitable for the temperature sensing of rubber, Teflon, silicone and metal heating rollers, conveyors, motor spindles, etc
•Temperature sensing surface has excellent abrasion resistance and a long lifespan
•Compact, simple installation
•Temperature rise is fast and stable
•Resistant against acid, base and various solvents
•Applicable for heating rollers of any size

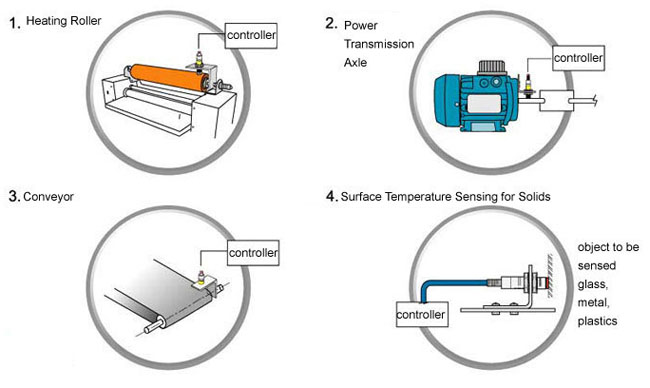

•Application Example: Roller Equipment、Power Equipment、Conveying Equipment、Surface Temperature Sensing

Price Table：

Quantity:

Specification

Type	Specifications	Note
Dimensions	m12ΦX55(mm) SUS310	Customizable for special requirements
Temperature Sensing Range	-20~250°C
Type of Temperature Sensing Body	PT100Ω ClassA / K.J Class.5	DINIEC751
Environment Temperatdure	-30~150°C
Measurement Distance	Contact type, adjustable distance 4 mm	Retractable spring
Response Speed	Approx. 6 seconds	DINIEC751
Resistance against Solvent (Spray)	Gasoline, machine oil, alcohol, ammonia, acetone, and cleanser
Resistance against Acid/Base	Mild acid or base
Water Proof Rating	IP68 CNS14165	9030700066
Fire-Resistance Rating	V094HB	UL E179854
Roller Size	MIN 20mm ~ MAX unlimited
Mounting Metho	L-shape mounting rack

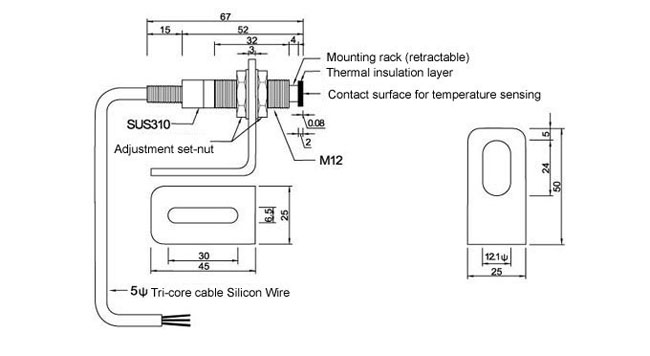

Dimension

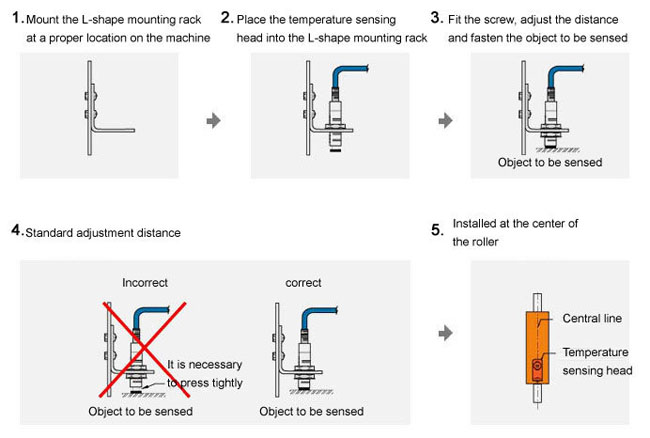

Installing

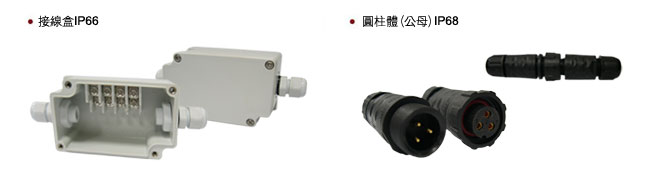

Connector

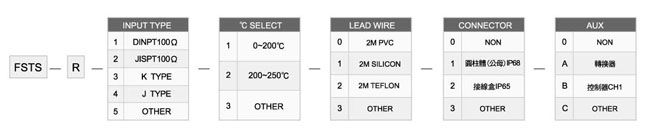

Order

Example
