home » product » Heaters & Coolers » Heaters » FSTS M / M1 TYPE Temperature Sensor
Heaters & Coolers » Heaters
•The best abnormal temperature detector for your equipment
•The best solution for surface temperature sensing
•Applicable temperature range:-30°C~250°C
•Accuracy: DINIEC751 class A or B
•The material has been certified by UL and complies with UL94HB fire-resistance rating
•Fast and accurate temperature sensing; 100% IP68 water proof
•It can be attached on the surface of the object to be sensed with the advantages of simple installation, resistance against severe environment and chemicals
•Can be securely attached on glass, metal, plastics, etc
•Application Example: Electrical Power Equipment、Solar Energy Equipment、Electronic Equipment、Power Equipment、Surface Temperature Sensing
Specification

Type
M M1 Note
Outer Dimensions
30X40 (mm)
10X30 (mm)
Can be customized for special requirements
Temperature Sensing Body
PT100Ω K.J. Thermister A or B class
Can be customized for special requirements
Response Speed
200°C / 2S
DINIEC751
Thermal Conductivity
1.5W / mK
ASTM D547D
Temperature Sensing Range
-30~250°C

Safety Certification (PAD)
UL94HB / UL746C
E54153 / E65361
Adhesion of Backside Sticker
1n2 1000 (100°C) / 500 (150°C) / 400 (200°C) / 300 (250°C) (g)

Corrosion Resistance
Gasoline, Acetone, cleanser, mild acid/base, etc
SPLASH TESTING
Water Proof Rating
IP68
CNS14165
Insulation Voltage Resistance
5KV
ASTM D-149-91
Installation Type
Backside Sticker (-30°C~200°C) Silicone (200°C以上)

Conducting Wire
PVC (100°C) Silicone (150°C) Teflon (180°C)

Connector

Cylindrical Body 17Φx80(mm) IP68 UL94V0 Terminal Box 82x50x40(mm) IP66 UL94V0

Optional Accessories

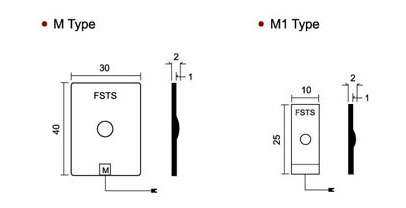

Dimension

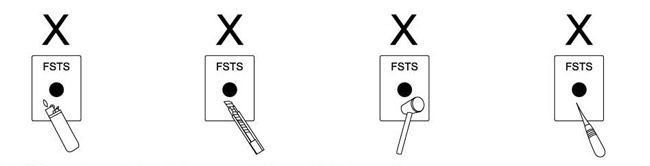

Precautions

After peeling off from attachment, it is necessary to stick a new backside sticker before another attachment (a spare backside sticker is supplied with the product).

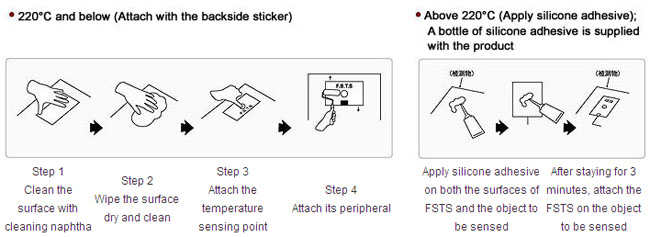

Attachment Technique

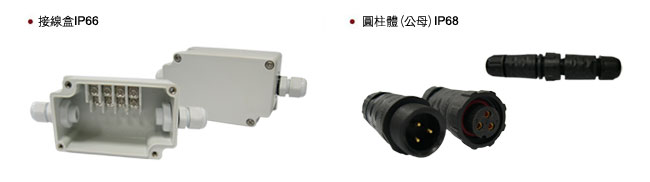

Connector

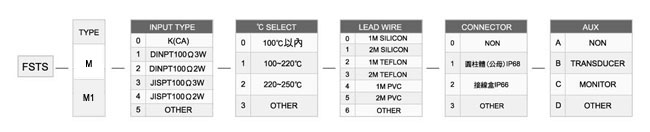

Order




Example

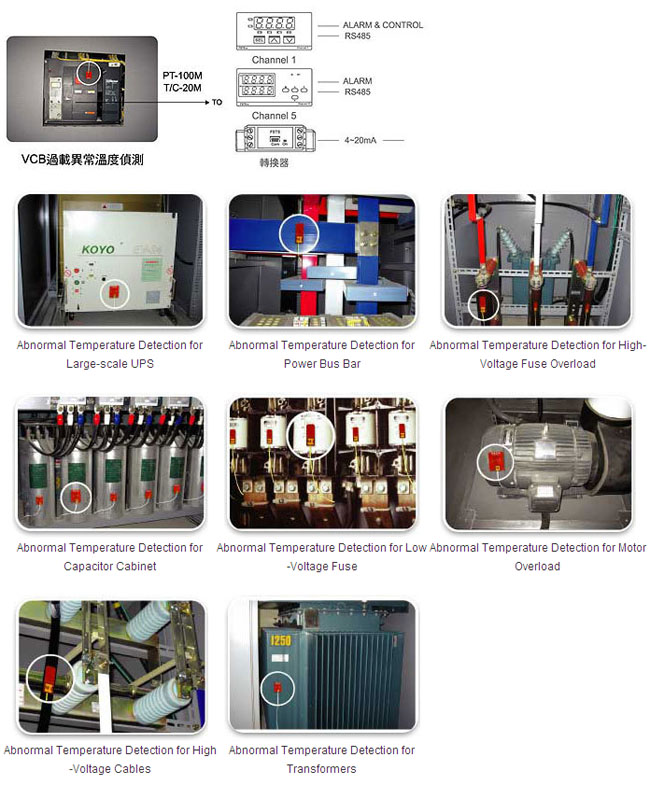

Abnormal Temperature Detection for Electronic Equipment:

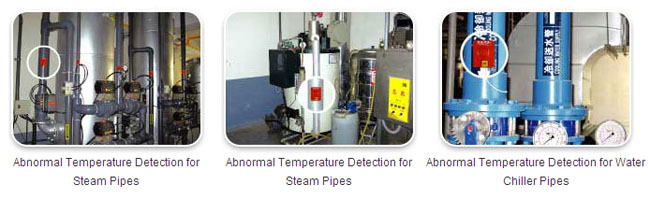

Abnormal Temperature Detection for Boiler Cooling Pipe Ducts:

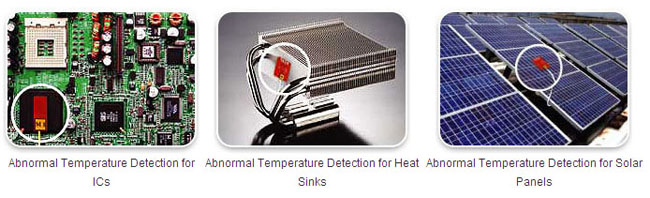

Abnormal Temperature Detection for Electronics Products:
